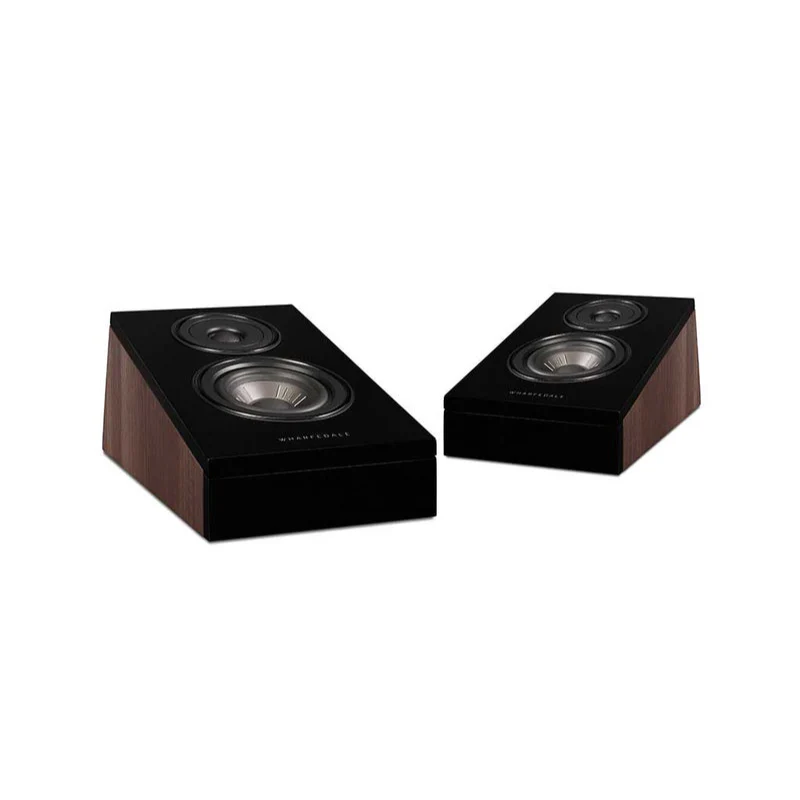

Wharfedale Diamond 12.3D Surround Loudspeakers - Pair (Black)
Collaboration with one of the most successful loudspeaker designers on the planet, Karl-Heinz Fink, has helped produce Wharfedale's most impressive Diamond series to date, and your all-access pass to the exclusive world of refined audio engineering.
This 2-way vertical channel surround loudspeaker features a 1" (25mm) textile dome tweeter and a 4" (100mm) advanced PP cone driver. Diamond 12.3D is designed to sit flush on top of Diamond 12.1 & 12.3 models; however, it's also wall-mountable, for height channels in home theatre systems.
Precision-made magnet systems incorporate aluminium compensation rings to cull distortion and discordant tones caused by intermodulation. Wharfedale's most advanced Diamond motor system ever built now puts you in perfect harmony with your movies.
- Technical Specifications
- General Description: 2-way vertical channel speaker
- Bass Driver: 1 x 4" (100mm) advanced PP Cone
- Treble Driver: 1" (25mm) Textile Dome
- Recommended Amplifier Power: 20-100W
- Nominal Impedance: 8Ω Compatible
- Sensitivity (2.83V @ 1m): 95dB
- Frequency Response (+/-3dB): 110Hz ~ 20kHz
- Dimensions (H x W x D): 145 x 180 x 310mm
- Net Weight: 3.2kg/pcs
photos and 3d renders are for illustrative purposes only. please see the specs sheet for the contents of this product.
More Images
Wharfedale Diamond 12.3D Surround Loudspeakers - Pair (Black)
Collaboration with one of the most successful loudspeaker designers on the planet, Karl-Heinz Fink, has helped produce Wharfedale's most impressive Diamond series to date, and your all-access pass to the exclusive world of refined audio engineering.
This 2-way vertical channel surround loudspeaker features a 1" (25mm) textile dome tweeter and a 4" (100mm) advanced PP cone driver. Diamond 12.3D is designed to sit flush on top of Diamond 12.1 & 12.3 models; however, it's also wall-mountable, for height channels in home theatre systems.
Precision-made magnet systems incorporate aluminium compensation rings to cull distortion and discordant tones caused by intermodulation. Wharfedale's most advanced Diamond motor system ever built now puts you in perfect harmony with your movies.
- Technical Specifications
- General Description: 2-way vertical channel speaker
- Bass Driver: 1 x 4" (100mm) advanced PP Cone
- Treble Driver: 1" (25mm) Textile Dome
- Recommended Amplifier Power: 20-100W
- Nominal Impedance: 8Ω Compatible
- Sensitivity (2.83V @ 1m): 95dB
- Frequency Response (+/-3dB): 110Hz ~ 20kHz
- Dimensions (H x W x D): 145 x 180 x 310mm
- Net Weight: 3.2kg/pcs
photos and 3d renders are for illustrative purposes only. please see the specs sheet for the contents of this product.
